Quarry & Mining
Heavy-Duty Solutions for Tough Environments
SCOA supports Nigeria’s mining and quarrying industries with a range of durable, high-performance machinery engineered for the most demanding applications. From rock extraction and crushing to material handling and on site drilling, our equipment delivers both power and precision in environments where reliability is non-negotiable.
We partner with globally respected manufacturers to provide cutting-edge technology and proven durability — ensuring optimal productivity, reduced downtime, and total confidence in the field.
220 SM
Extraction of primary resources in small and medium-scale mining operations
-
The 220 SM / 220 SMi models are the best choice not only for use in small- to medium-scale mining and quarrying operations, but also for routing work and infrastructure projects.
-
The compact and versatile Surface Miner selectively extracts primary resources with an unconfined compressive strength of up to 50 MPa to cutting depths of up to 300 mm.
-
The 2.2 m wide cutting drum unit is tailored precisely to the specific application and guarantees high productivity at low operating costs.
-
Primary resources are extracted in a single, environmentally sustainable operation without drilling and blasting, yielding material of the purest quality.
-
When using the windrowing method, the extracted material is continuously deposited in rows behind the machine.
DA45 Articulated Dump Truck
The DA45-5 articulated dump truck offers the power, technology, comfort and larger payload capacity for challenging non-road construction and mining applications. To protect against overloading, an active payload meter can use a traffic light indicator to alert operators.
You can count on better weight distribution for extreme performance and traction in off-road conditions. The unique DEVELON design with front-mounted turning ring, sloping rear frame and free-swinging rear tandem bogie ensures permanent 6-wheel ground contact. The limited slip differential delivers the highest torque to the wheel offering the best traction.MC 120 PRO

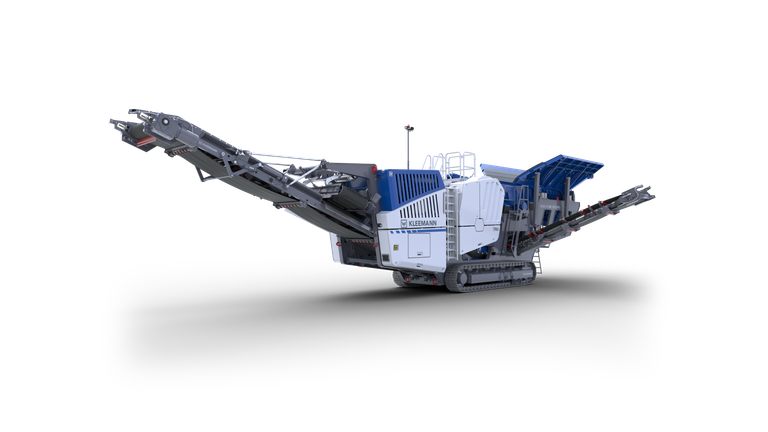

The MOBICAT MC 120 PRO, the first jaw crusher in the PRO line, is used for pre-crushing almost all types of natural stone. The jaw crusher is extremely robust and impresses with its low-maintenance operation. The machine therefore guarantees high production outputs.
-
Extremely robust design
-
Very high production output with low-maintenance operation
-
Crusher unblocking system via frequency converter (optional)
-
External power supply (optional)
-
Ideal combination with downstream MOBICONE MCO 110 PRO cone crusher
