Extraction of primary resources in small and medium-scale mining operations
The 220 SM / 220 SMi models are the best choice not only for use in small- to medium-scale mining and quarrying operations, but also for routing work and infrastructure projects.
The compact and versatile Surface Miner selectively extracts primary resources with an unconfined compressive strength of up to 50 MPa to cutting depths of up to 300 mm.
The 2.2 m wide cutting drum unit is tailored precisely to the specific application and guarantees high productivity at low operating costs.
Primary resources are extracted in a single, environmentally sustainable operation without drilling and blasting, yielding material of the purest quality.
When using the windrowing method, the extracted material is continuously deposited in rows behind the machine.
The design of the 3.8 m cutting drum unit of the 220 SM 3.8 / 220 SMi 3.8 models is optimised for the mining and quarrying of soft rock and guarantees maximum productivity and minimised operating costs.
The Surface Miner extracts natural resources with a uniaxial compressive strength of up to 35 MPa to cutting depths of up to 350 mm.
The 220 SM 3.8 / 220 SMi 3.8 models are the ideal choice for use in all mining and quarrying operations, regardless of their size.
Natural resources are extracted in high quality without drilling and blasting in a single, environmentally compatible operation.
When using the windrowing method, the extracted material is continuously deposited in rows behind the machine.
Technology and performance for the most challenging infrastructure projects
The 260 SX provides solutions for the most challenging infrastructure projects and impresses with maximum availability and highest daily productivity.
It is ideal for a wide range of tasks such as routing work in road and railway construction, the excavation of harbour basins, trenching for buried pipelines and even for cutting work in tunnels.
Its 2,750 mm cutting drum unit with a cutting depth of up to 650 mm offers an ideal combination of high cutting performance, optimal material flow and minimal pick wear.
Its high-performance rear loading conveyor can be elevated and slewed to enable loading of road-legal trucks.
Its air-conditioned and soundproofed operator’s cabin with all-round glazing is swivel-mounted on the front chassis column and provides a fatigue-free and productive working environment.
Maximum availability. Maximum productivity. 100 per cent mining
High-performance surface miners for reliable, selective extraction of raw materials by direct loading, sidecasting, or cut-to-ground.
Raw materials are extracted and crushed in situ in purest quality in a single operation – without drilling and blasting, and with minimal environmental impact.
The 2,750 mm cutting drum unit with a cutting depth of up to 650 mm is precisely adaptable to each specific application and achieves outstanding cutting performance with minimal cutting tool wear.
The powerful rear loading conveyor with a movable counterweight can be elevated and slewed to ensure a perfect flow of materials and makes it possible to load trucks with payloads of up to 100 tons.
Its air-conditioned and soundproofed operator’s cabin with all-round glazing is swivel-mounted on the front chassis column and provides a fatigue-free and productive working environment.
Maximum performance in large-scale opencast mining
Surface miner with the highest mining capacity for the selective extraction of hard or soft rock.
The 4.2 m cutting drum unit, which is precisely tailored to the respective application and has a cutting depth of up to 830 mm in soft stone, achieves high cutting performance with minimal bit wear.
The powerful, liftable and swivelling rear loading conveyor allows SKW to be loaded with a payload of 120 to 220 tonnes.
With an annual output of up to 12 million tons in soft rock, the miner is ideal for large-scale opencast mining.
The all-round glazed cab is heated, air-conditioned, soundproofed and vibration-decoupled for fatigue-free, productive work.

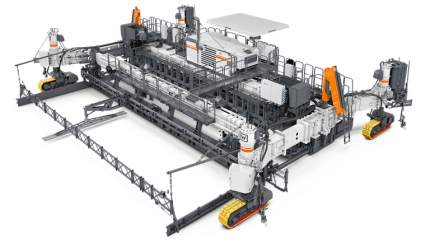

Slipform paver for cost-effective, large-scale concrete paving

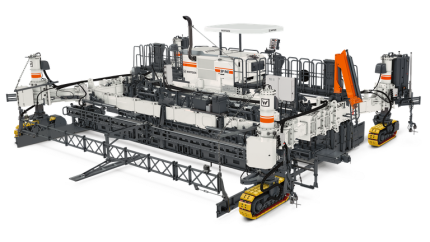

The inset slipform paver is the perfect choice for the cost-effective paving of large concrete surfaces ranging from 4.5 m to 12.0 m wide and 450 mm thick.
The slipform paver can be easily adapted to any job site situation due to the machine frame that can be hydraulically telescoped lengthwise and mechanically telescoped sideways.
Standard-configuration with four track units on hydraulic arms that can be conveniently swung in for easier transportation and offer outstanding adaptability for all on-site situations.
Precise insertion of tie bars and dowel bars via self-loading dowel bar inserter (optional) enables concrete paving over reinforcing steel.
The intelligent electronic steering and control concept ensures that the four crawler units move with pinpoint accuracy for high-precision concrete paving.

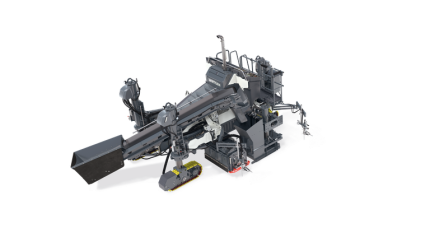

Unique, multi-functional offset and inset slipform paver
The multifunctional slipform paver builds a variety of monolithic profiles up to 2.0 high.
Concrete surfaces up to a paving width of 3.5 m can be applied both as an inset and offset method (not in combination with all options).
Single or two hydraulic parallelogram swing arms at the front and a hydraulically telescopic track unit at the rear enable extremely flexible paving.
The intelligent, electronic steering and control concept enables driving in extremely tight diameters and high adaptability to any construction site situation.
The machine can precisely control the reading from the offset wire via the offset radio WIRTGEN AutoPilot 2.0 or 3D applications.

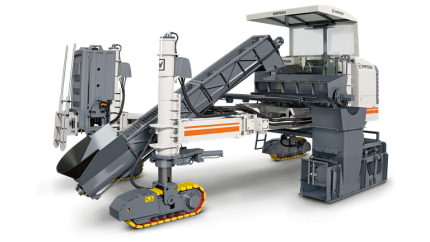

The compact slipform paver can pave a wide range of monolithic concrete profiles such as curbs, curb-gutter profiles, rectangular profiles, concrete safety barriers up to 1.3 m, drainage channels and gutter profiles.

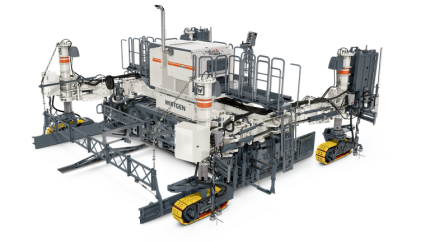

The 4-track flexible slipform paver is characterised by its extremely wide range of applications in the construction of road and flight operating surfaces with widths of 2.0 m to 7.5 m and a thickness of 450 mm.
The machine concept offers the highest level of quality for surface smoothness.
The fully modular machine structure, the possibility of easy modification and development, as well as the hydraulic swing arms offer high adaptability to any construction site situation.
The intelligent, electronic steering and control system ensures precise driving behavior for the four track units and thus precise concrete paving.
The exact insertion of the connecting bar and dowels thanks to a self-loading connecting bar inserter (optional) ensures the concrete paving with reinforcement requirements.
The 4-track flexible slipform paver is characterised by an extremely wide range of applications in the construction of road and flight operating surfaces with widths of 2.0 m to 9.5 m and a thickness of 450 mm.
The machine concept offers the highest level of quality for surface smoothness.
The fully modular machine structure, the possibility of easy modification and development, as well as the hydraulic swing arms offer high adaptability to any construction site situation.
The intelligent, electronic steering and control system ensures precise driving behavior for the four track units and thus precise concrete paving.
The exact insertion of the connecting bar and dowels thanks to a self-loading connecting bar inserter (optional) ensures the concrete paving with reinforcement requirements.
STREUMASTER binding agent spreaders are suitable both for spreading large quantities of binding agents during soil stabilisation and for spreading small quantities of binding agents with maximum precision during cold recycling.
There are various different types and series of binding agent spreaders. Essentially, these can be subdivided according to type into the categories truck-mounted spreaders (M – Mounted) and towed spreaders (T – Towed). In addition to the vehicle type, these types also differ in the form of their spreading units: STREUMASTER primarily offers spreaders with cellular wheel spreading units (C - Cellular wheel).

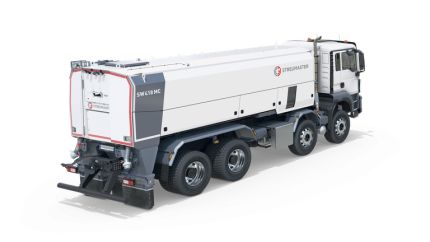

The MC series mobile binding agent spreaders are mounted on a carrier vehicle and are therefore predestined for use in difficult off-road terrain.
With a maximum spreading width of 2,360 mm the TC and MC series achieve spreading rates of up to 60 kg/m2 (at a speed of 2 km/h with a binder density of 1 kg/l).
In combination with products from the WIRTGEN GROUP, STREUMASTER binding agent spreaders cover the complete cycle in road construction and earthworks.
STREUMASTER binding agent spreaders are suitable both for spreading large quantities of binding agents during soil stabilisation and for spreading small quantities of binding agents with maximum precision during cold recycling.
There are various different types and series of binding agent spreaders. Essentially, these can be subdivided according to type into the categories truck-mounted spreaders (M – Mounted) and towed spreaders (T – Towed). In addition to the vehicle type, these types also differ in the form of their spreading units: STREUMASTER primarily offers spreaders with cellular wheel spreading units (C - Cellular wheel).

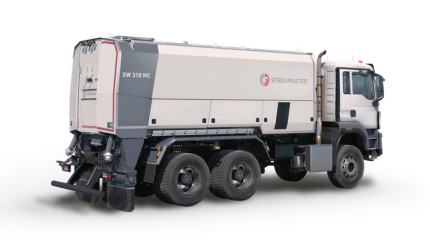

The MC series mobile binding agent spreaders are mounted on a carrier vehicle and are therefore predestined for use in difficult off-road terrain.
With a maximum spreading width of 2,360 mm the TC and MC series achieve spreading rates of up to 60 kg/m2 (at a speed of 2 km/h with a binder density of 1 kg/l).
In combination with products from the WIRTGEN GROUP, STREUMASTER binding agent spreaders cover the complete cycle in road construction and earthworks.

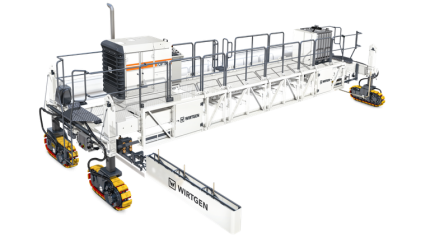

Optimum texture and protection for concrete surfaces up to 18.0 m wide
The modular machine design allows it to be adapted to working widths between 4.0 m and 18.0 m.
The self-propelled texture curing machine produces the desired surface textures on the freshly paved concrete surface.
The automated spraying system with a generously sized storage container effectively distributes the dispersion and protects the concrete surface from premature drying.
The various texture and spray modes as well as other texture alternatives offer a wide range of functionality.
An extensive array of options that can be combined without additional installation work make a wide variety of applications possible while guaranteeing maximum machine availability.

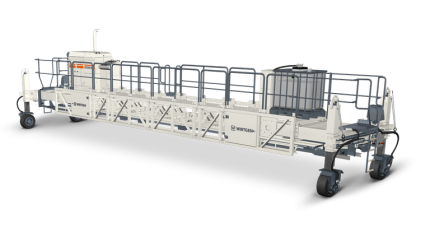

Optimum texture and protection for concrete surfaces up to 9.5 m wide
The modular machine design allows it to be adapted to working widths between 4.0 m and 9.5 m.
The self-propelled texture curing machine produces the desired surface textures on the freshly paved concrete surface.
The automated spraying system with a generously sized storage container effectively distributes the dispersion and protects the concrete surface from premature drying.
The various texture and spray modes as well as other texture alternatives offer a wide range of functionality.
An extensive array of options that can be combined without additional installation work make a wide variety of applications possible while guaranteeing maximum machine availability.

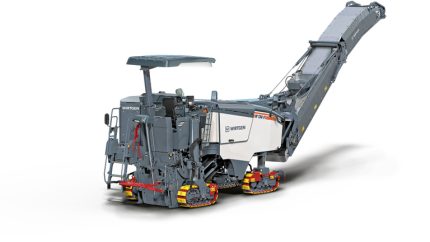

Innovation and sustainability for versatile scarifier uses
The front loader in the one-meter class impresses with high performance and flexibility with a working width of 1.3 m.
Compact dimensions and optimised machine weight ensure a high range of applications on narrow construction sites such as urban areas.
FCS milling rollers with different blade openings and working widths further expand the application options.
The modern leveling system LEVEL PRO ACTIVE, the intuitive control concept and other digital assistance systems ensure efficient one-man control and precise milling results.
The innovative machine control MILL ASSIST ensures sustainable, efficient machine operation with high productivity.

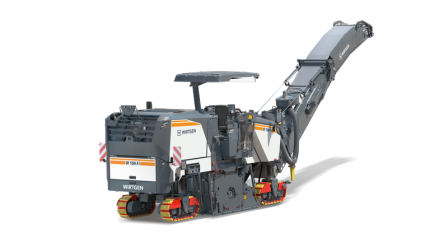

Powerful, agile compact milling cutter for a variety of milling tasks
The most powerful cold milling machine in its compact class is particularly suitable for medium-sized construction projects in confined spaces, such as urban areas.
The innovative machine control Mill assist ensures sustainable, efficient machine operation with high productivity.
The MCS – Multiple Cutting System with Basic or Variabel options enables the use of various milling drums with a working width of 0.6 m to a maximum of 1.8 m for greater operational flexibility and machine efficiency.
The modern leveling system LEVEL PRO ACTIVE, the intuitive control concept and other digital assistance systems ensure efficient one-man control and precise milling results.
The optimised machine weight makes transport easier and the centrally positioned milling drum unit ensures ideal weight distribution and high traction.
