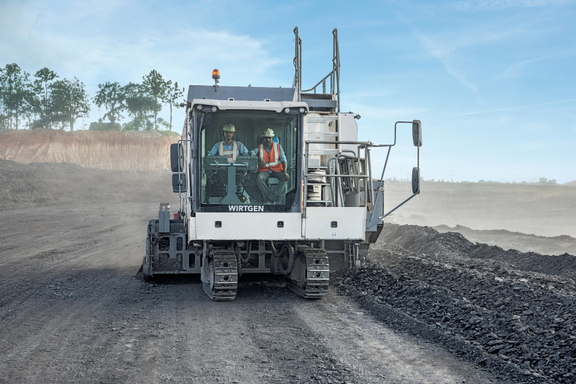

The design of the 3.8 m cutting drum unit of the 220 SM 3.8 / 220 SMi 3.8 models is optimised for the mining and quarrying of soft rock and guarantees maximum productivity and minimised operating costs.
The Surface Miner extracts natural resources with a uniaxial compressive strength of up to 35 MPa to cutting depths of up to 350 mm.
The 220 SM 3.8 / 220 SMi 3.8 models are the ideal choice for use in all mining and quarrying operations, regardless of their size.
Natural resources are extracted in high quality without drilling and blasting in a single, environmentally compatible operation.

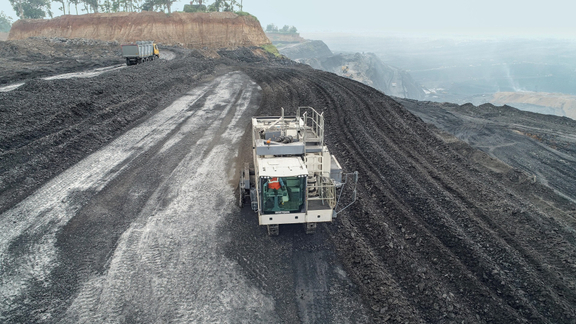

When using the windrowing method, the extracted material is continuously deposited in rows behind the machine.
Extraction of primary resources in small and medium-scale mining operations
The 220 SM / 220 SMi models are the best choice not only for use in small- to medium-scale mining and quarrying operations, but also for routing work and infrastructure projects.
The compact and versatile Surface Miner selectively extracts primary resources with an unconfined compressive strength of up to 50 MPa to cutting depths of up to 300 mm.
The 2.2 m wide cutting drum unit is tailored precisely to the specific application and guarantees high productivity at low operating costs.
Primary resources are extracted in a single, environmentally sustainable operation without drilling and blasting, yielding material of the purest quality.
When using the windrowing method, the extracted material is continuously deposited in rows behind the machine.
Maximum availability. Maximum productivity. 100 per cent mining
High-performance surface miners for reliable, selective extraction of raw materials by direct loading, sidecasting, or cut-to-ground.
Raw materials are extracted and crushed in situ in purest quality in a single operation – without drilling and blasting, and with minimal environmental impact.
The 2,750 mm cutting drum unit with a cutting depth of up to 650 mm is precisely adaptable to each specific application and achieves outstanding cutting performance with minimal cutting tool wear.
The powerful rear loading conveyor with a movable counterweight can be elevated and slewed to ensure a perfect flow of materials and makes it possible to load trucks with payloads of up to 100 tons.
Its air-conditioned and soundproofed operator’s cabin with all-round glazing is swivel-mounted on the front chassis column and provides a fatigue-free and productive working environment.
Maximum performance in large-scale opencast mining
Surface miner with the highest mining capacity for the selective extraction of hard or soft rock.
The 4.2 m cutting drum unit, which is precisely tailored to the respective application and has a cutting depth of up to 830 mm in soft stone, achieves high cutting performance with minimal bit wear.
The powerful, liftable and swivelling rear loading conveyor allows SKW to be loaded with a payload of 120 to 220 tonnes.
With an annual output of up to 12 million tons in soft rock, the miner is ideal for large-scale opencast mining.
The all-round glazed cab is heated, air-conditioned, soundproofed and vibration-decoupled for fatigue-free, productive work.
The MOBICAT MC 120 PRO, the first jaw crusher in the PRO line, is used for pre-crushing almost all types of natural stone. The jaw crusher is extremely robust and impresses with its low-maintenance operation. The machine therefore guarantees high production outputs.
Extremely robust design
Very high production output with low-maintenance operation
Crusher unblocking system via frequency converter (optional)
External power supply (optional)
Ideal combination with downstream MOBICONE MCO 110 PRO cone crusher
The compact slipform paver can pave a wide range of monolithic concrete profiles such as curbs, curb-gutter profiles, rectangular profiles, concrete safety barriers up to 1.3 m, drainage channels and gutter profiles.
STREUMASTER binding agent spreaders are suitable both for spreading large quantities of binding agents during soil stabilisation and for spreading small quantities of binding agents with maximum precision during cold recycling.
There are various different types and series of binding agent spreaders. Essentially, these can be subdivided according to type into the categories truck-mounted spreaders (M – Mounted) and towed spreaders (T – Towed). In addition to the vehicle type, these types also differ in the form of their spreading units: STREUMASTER primarily offers spreaders with cellular wheel spreading units (C - Cellular wheel).
The MC series mobile binding agent spreaders are mounted on a carrier vehicle and are therefore predestined for use in difficult off-road terrain.
With a maximum spreading width of 2,360 mm the TC and MC series achieve spreading rates of up to 60 kg/m2 (at a speed of 2 km/h with a binder density of 1 kg/l).
In combination with products from the WIRTGEN GROUP, STREUMASTER binding agent spreaders cover the complete cycle in road construction and earthworks.
Optimum texture and protection for concrete surfaces up to 9.5 m wide
The modular machine design allows it to be adapted to working widths between 4.0 m and 9.5 m.
The self-propelled texture curing machine produces the desired surface textures on the freshly paved concrete surface.
The automated spraying system with a generously sized storage container effectively distributes the dispersion and protects the concrete surface from premature drying.
The various texture and spray modes as well as other texture alternatives offer a wide range of functionality.
An extensive array of options that can be combined without additional installation work make a wide variety of applications possible while guaranteeing maximum machine availability.
Powerful, agile compact milling cutter for a variety of milling tasks
The most powerful cold milling machine in its compact class is particularly suitable for medium-sized construction projects in confined spaces, such as urban areas.
The innovative machine control Mill assist ensures sustainable, efficient machine operation with high productivity.
The MCS – Multiple Cutting System with Basic or Variabel options enables the use of various milling drums with a working width of 0.6 m to a maximum of 1.8 m for greater operational flexibility and machine efficiency.
The modern leveling system LEVEL PRO ACTIVE, the intuitive control concept and other digital assistance systems ensure efficient one-man control and precise milling results.
The optimised machine weight makes transport easier and the centrally positioned milling drum unit ensures ideal weight distribution and high traction.
