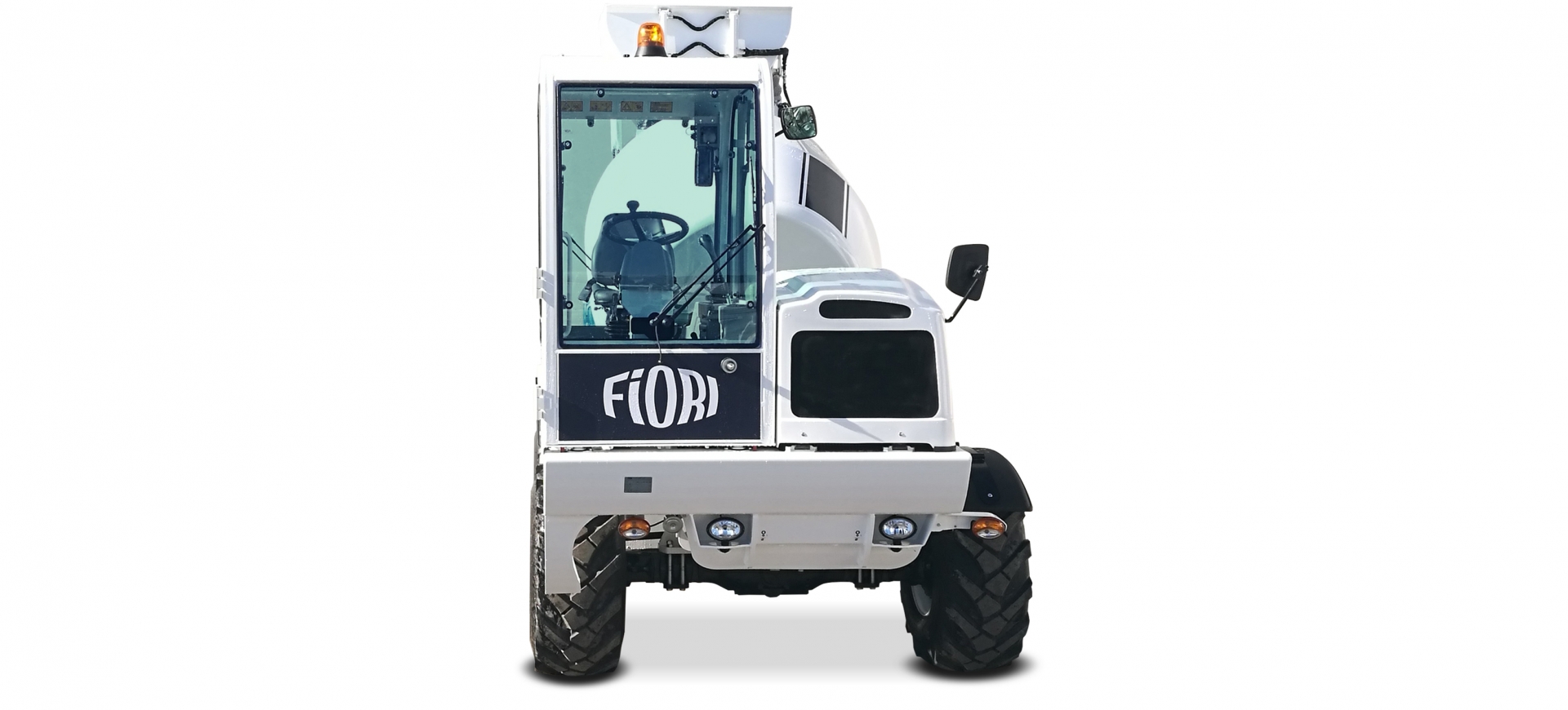

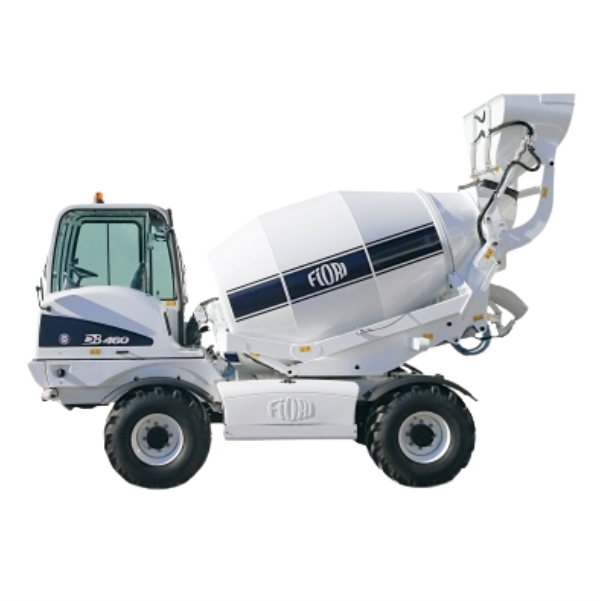

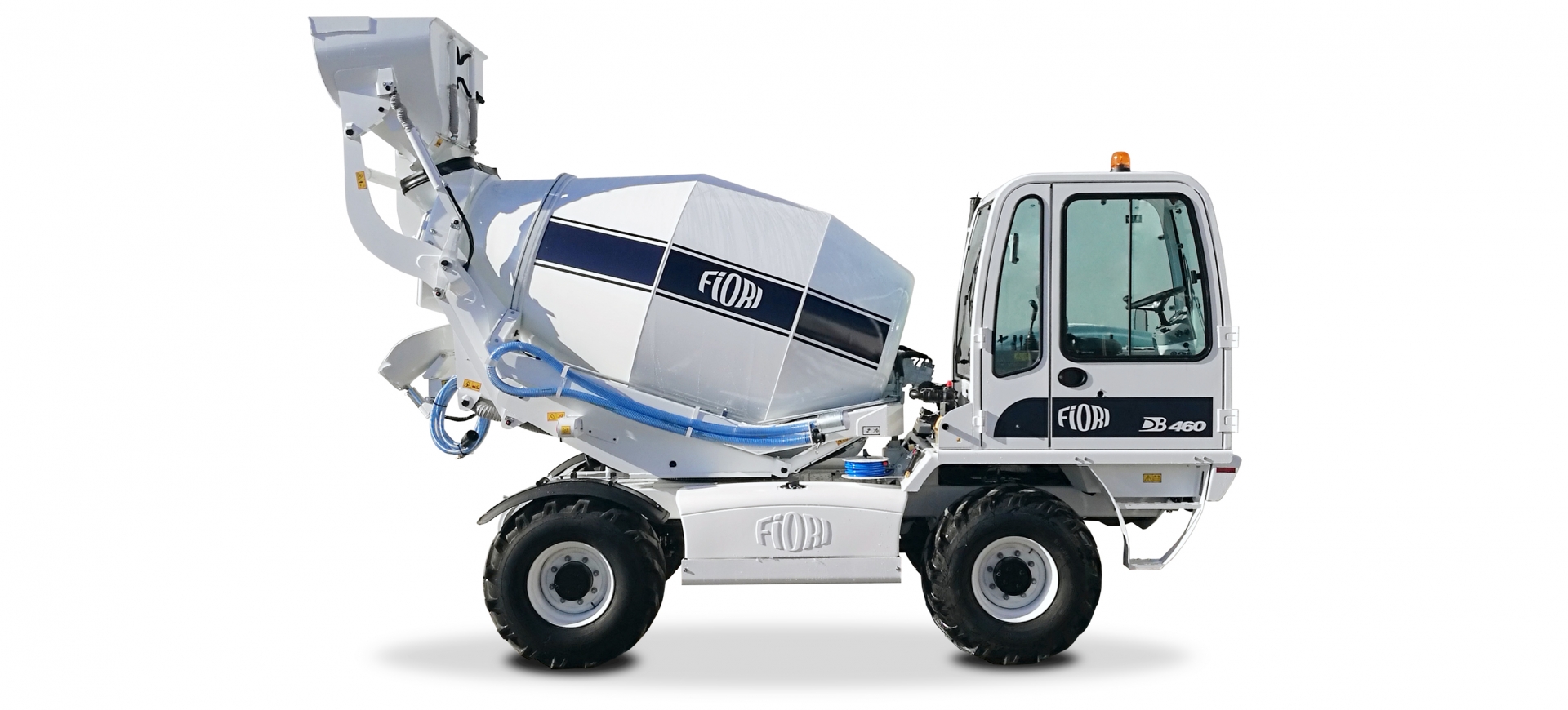

DB 460
With a 4.0 m³ concrete yield, the DB 460 is unique in the world of self-loading concrete mixers and the best-selling model on the market. Agile and functional, equipped with reversible driver’s seat, four-wheel drive and steering, tilting drum system (to facilitate mixing and casting of any kind of concrete), and 360° unloading, this vehicle guarantees an extremely high daily productivity in different construction site conditions. Featuring a special drum design that ensures optimal mix homogenisation, the DB 460 models are often equipped with the CBV 2.0 option (a FIORI GROUP proprietary system for production process management and control), making them a valid alternative to small and medium-sized batching plants. The unrivalled technology of the CBV 2.0 guarantees constancy, repeatability, and certifiability of the concrete produced and includes an option for connection to the HS/BS cement dispensers, thereby ensuring a controlled, accurate, fast, and documented process.
